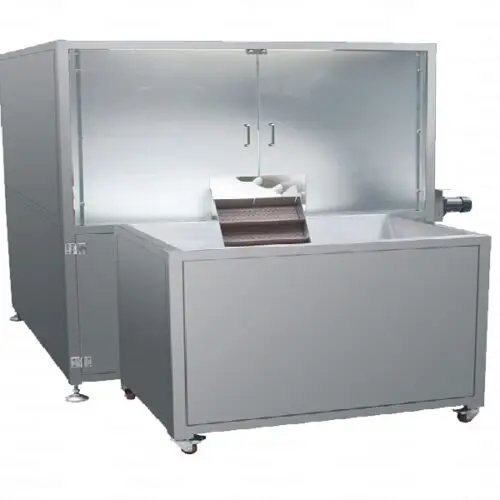

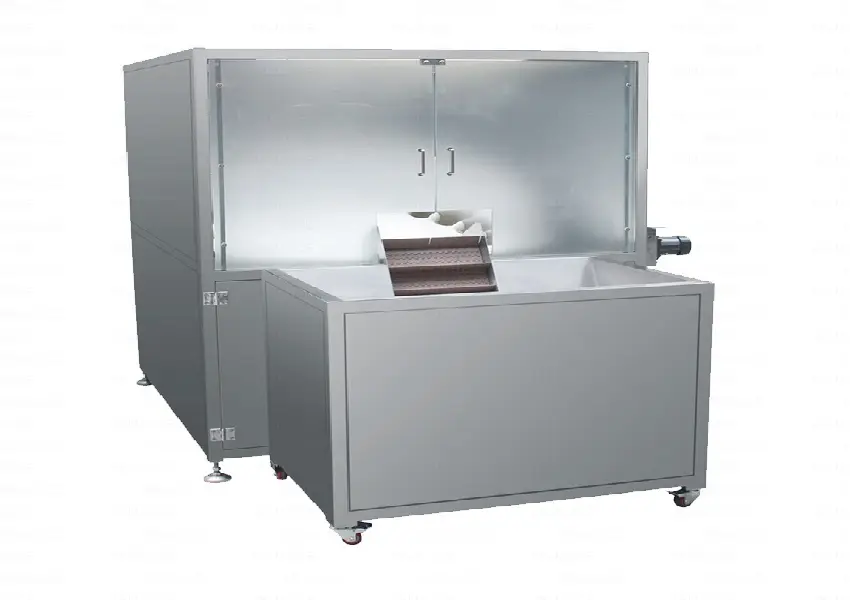

الـ Automatic 5ml, 10ml, 15ml, 20ml, and 30ml Small Plastic Bottle Unscrambler Machine is specially designed to automatically sort, orient, and feed small plastic bottles for pharmaceutical liquid production lines. It is widely used for manufacturing eye drops, nasal drops, ear drops, ophthalmic solutions, saline products, and other liquid pharmaceutical formulations.

By automatically arranging randomly loaded bottles into an upright position, the machine delivers a continuous, stable bottle supply to downstream filling and capping equipment. It significantly reduces manual handling, improves production efficiency, and supports fully automated pharmaceutical manufacturing.

Designed according to GMP standards, the bottle unscrambler is an ideal front-end solution for modern pharmaceutical packaging lines.

Applications

The automatic bottle unscrambler is suitable for a variety of pharmaceutical and healthcare products, including:

• قطرات العين

• Artificial tears

• Preservative-free ophthalmic solutions

• Antibiotic eye drops

• Nasal drops

• Saline nasal sprays

• Ear drops

• Veterinary ophthalmic medicines

• Diagnostic reagents

• Oral liquid products in small plastic bottles

• Cosmetic serums and skincare liquids

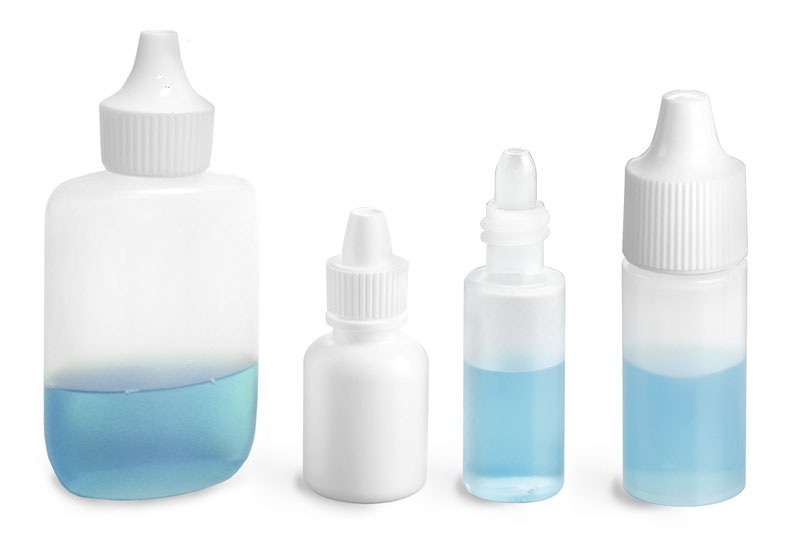

Compatible Bottle Sizes

The machine is designed to handle a wide range of small plastic bottles, including:

• 5 ml

• 10 ml

• 15 ml

• 20 ml

• 30 ml

Supported bottle materials include:

• LDPE bottles

• HDPE bottles

• Plastic squeeze bottles

• Round bottles

• Oval bottles

• Customized plastic bottle designs

Quick-change format parts allow rapid switching between different bottle sizes, making the machine suitable for multi-product manufacturing.

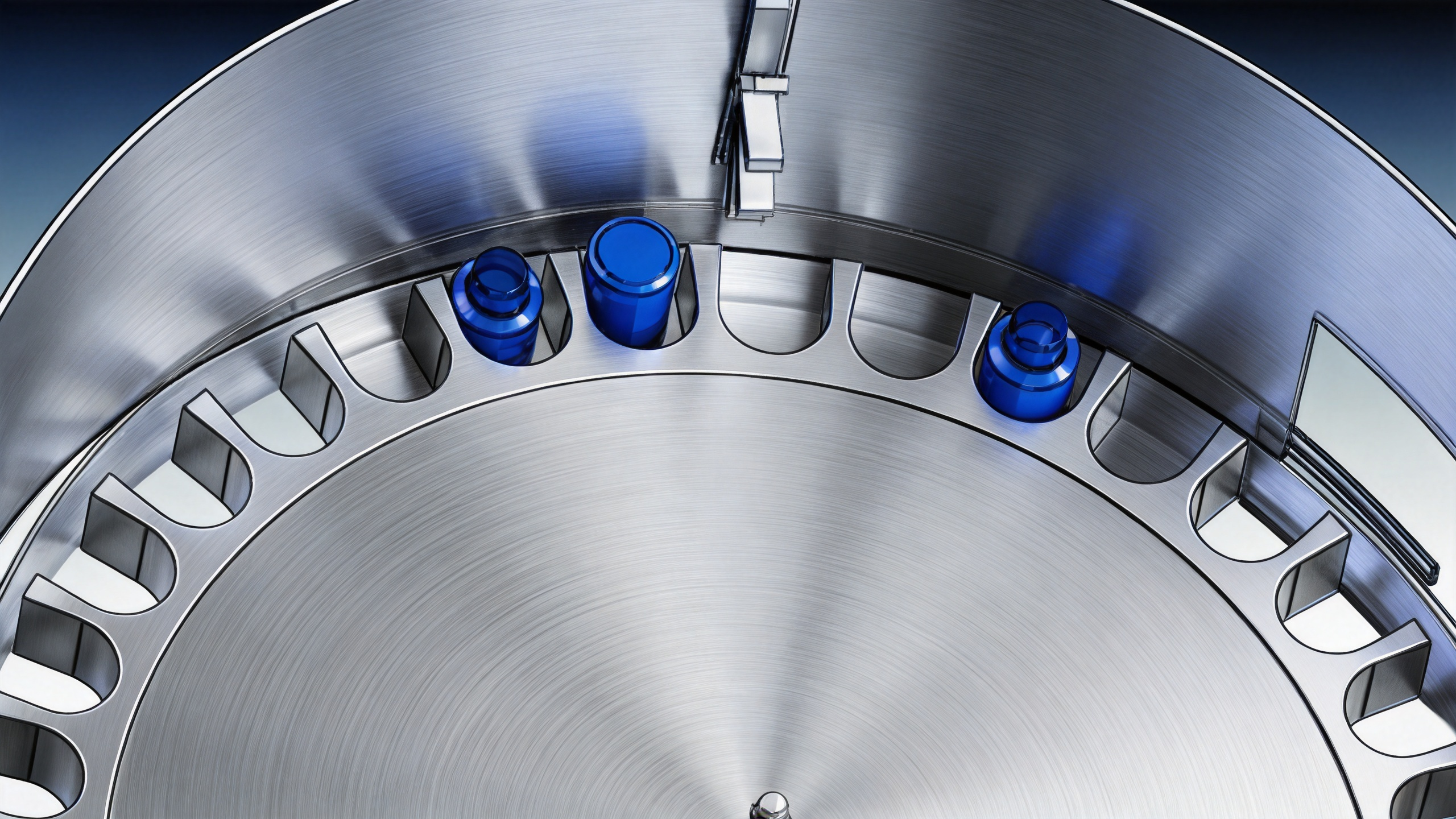

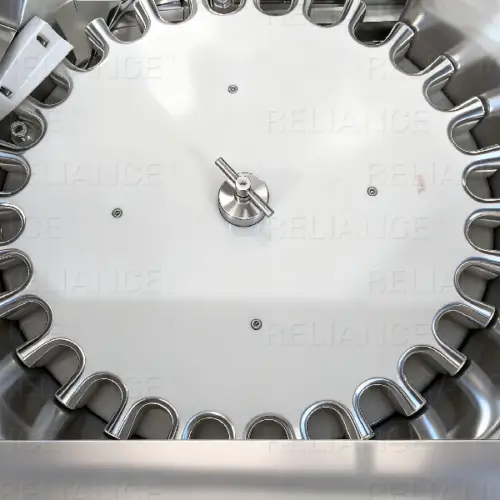

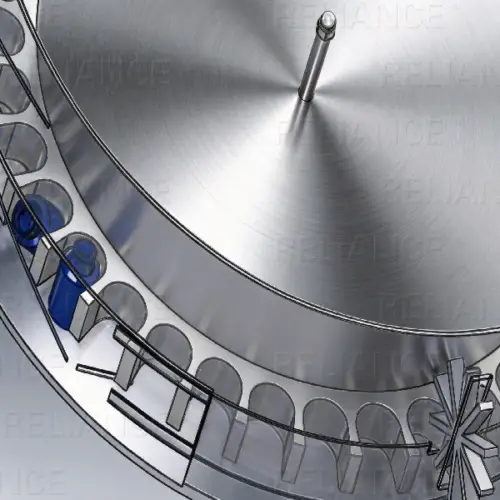

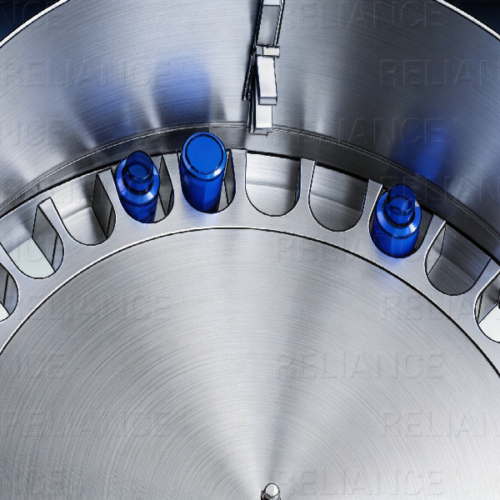

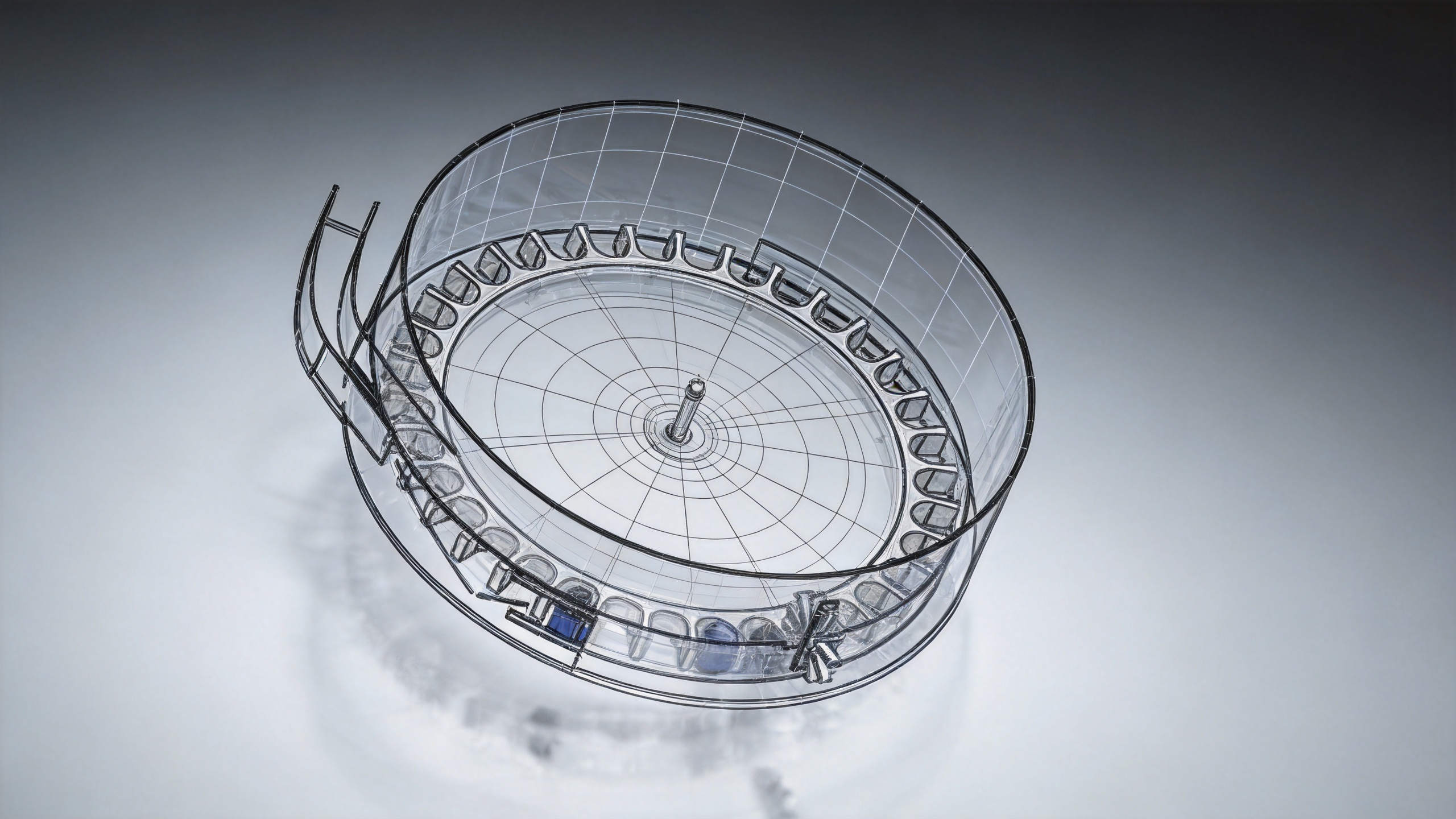

Working Principle

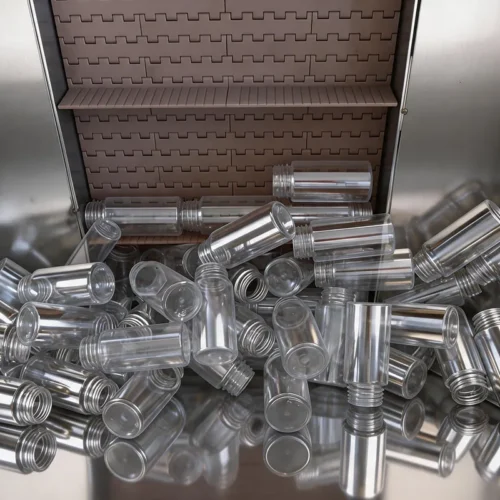

Operators simply load empty bottles into the large-capacity hopper. The unscrambler automatically performs the following operations:

1. Random bottle feeding

2. Bottle orientation

3. Automatic bottle sorting

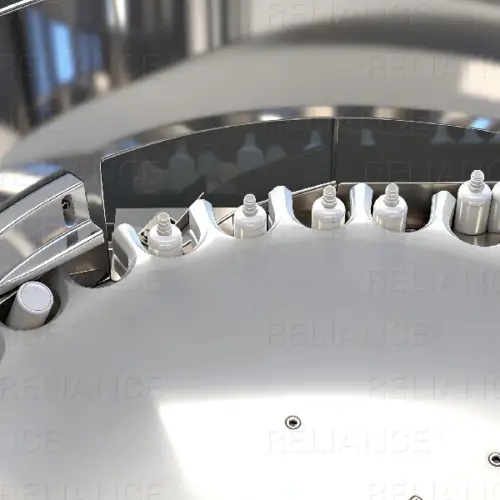

4. Upright bottle positioning

5. Continuous bottle discharge

6. Stable transfer to the filling and capping machine

The entire process is fully automatic, ensuring a smooth and uninterrupted bottle supply without manual bottle arrangement.

Key Features

High-Speed Bottle Unscrambling

The machine efficiently orients and feeds bottles at high speed while maintaining stable bottle flow.

Benefits include:

• Continuous automatic bottle feeding

• High production efficiency

• Stable bottle orientation

• Reduced manual labor

• Reliable operation during long production runs

It can be seamlessly matched with high-speed pharmaceutical filling lines.

Gentle Bottle Handling

Specially designed bottle handling mechanisms protect lightweight plastic bottles from deformation and scratches.

The machine ensures:

• Smooth bottle transportation

• Low vibration

• Minimal bottle damage

• Stable bottle positioning

• Reliable bottle transfer

This is especially important for soft LDPE eye drop bottles.

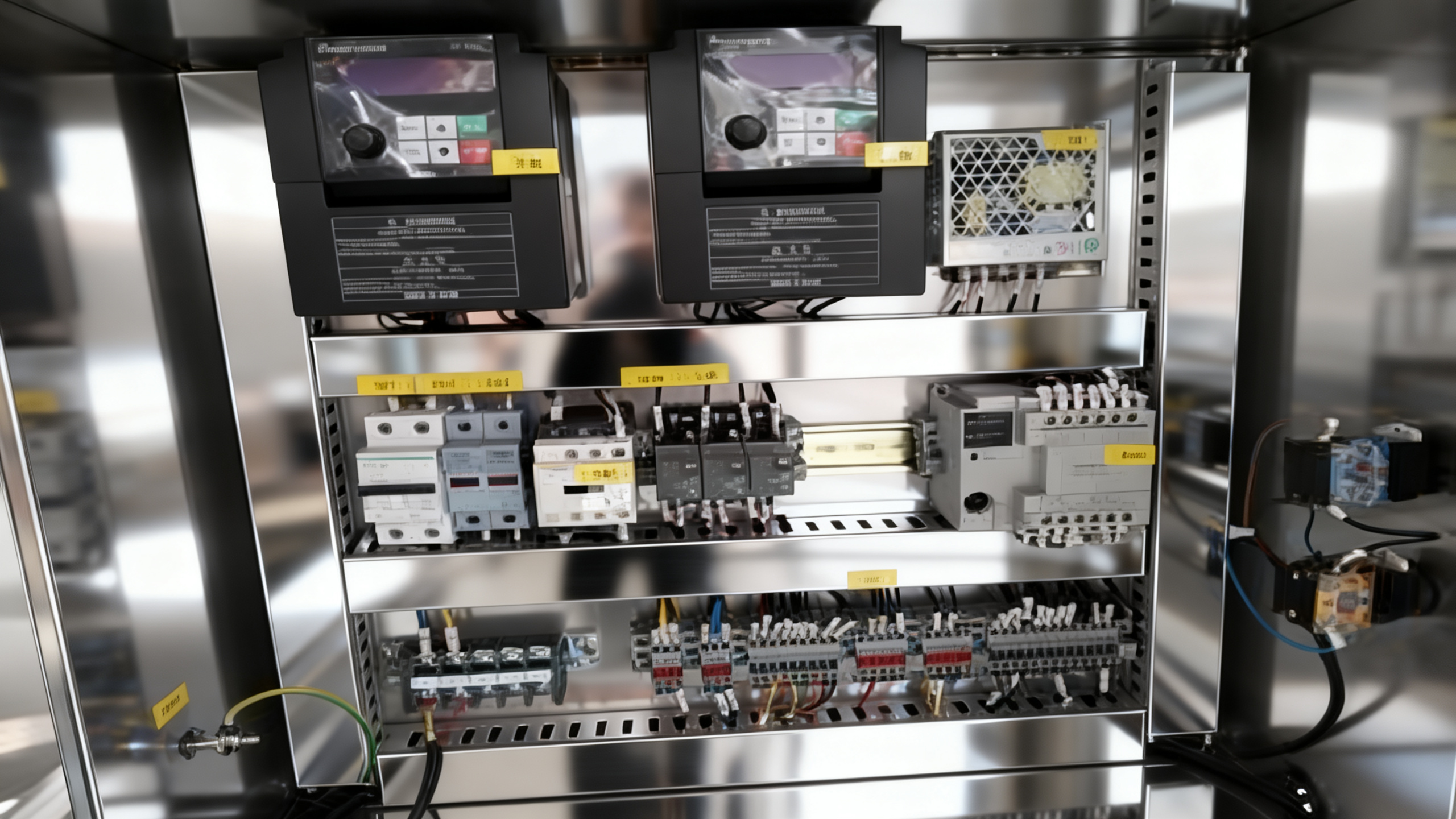

Intelligent Automatic Control

The bottle unscrambler is equipped with an advanced automation system featuring:

• Siemens PLC

• Siemens HMI touchscreen

• Servo motor drive

• Frequency-controlled speed adjustment

• Automatic synchronization with downstream equipment

• Fault alarm and diagnostic system

Operators can easily adjust machine parameters through the user-friendly touchscreen interface.

Automatic Bottle Detection

To ensure stable production, the machine includes intelligent monitoring functions such as:

• Bottle shortage alarm

• Bottle jam detection

• Automatic stop when downstream equipment is full

• Automatic restart after production resumes

• Emergency stop protection

• Overload protection

These functions improve equipment reliability while protecting both bottles and machinery.

GMP-Compliant Hygienic Design

The machine is manufactured according to pharmaceutical GMP requirements.

تشمل الميزات ما يلي:

• SUS304 stainless steel construction

• Smooth surface finish

• سهولة التنظيف والصيانة

• Open-frame structure for convenient inspection

• Compact footprint

• Low particle generation

Its hygienic design makes it suitable for pharmaceutical cleanroom environments.

Optional Features

To meet different production requirements, the machine can be configured with:

• Automatic bottle elevator

• Bottle air cleaning system

• Ionized air cleaning

• Dust collection system

• Vision inspection system

• Empty bottle inspection

• Laminar Air Flow (LAF) integration

• تسجيل بيانات الإنتاج

• Remote diagnostics

• Customized bottle change parts

Advantages

• Designed specifically for pharmaceutical small plastic bottles

• Suitable for multiple bottle sizes from 5 ml to 30 ml

• High-speed and continuous bottle feeding

• Gentle bottle handling with minimal deformation

• Quick bottle size changeover

• Siemens intelligent control system

• Stable synchronization with filling machines

• GMP-compliant hygienic design

• Easy operation and maintenance

• Long service life with low maintenance costs

Complete Pharmaceutical Production Line Integration

The automatic bottle unscrambler can be integrated into a complete pharmaceutical liquid packaging line, including:

1. Automatic Bottle Unscrambler

2. Bottle Air Cleaning Machine (optional)

3. Eye Drop Filling and Capping Machine

4. آلة وضع الملصقات

5. Cartoning Machine

6. Case Packing Machine

7. Automatic Palletizer

This integrated solution provides fully automated production from empty bottles to finished packaged products.

Why Choose Our Bottle Unscrambler?

With years of experience in pharmaceutical packaging machinery, we design bottle unscramblers that combine reliability, efficiency, and GMP compliance. Every machine is engineered to provide stable bottle orientation while minimizing downtime and maintenance.

Our services include:

• Customized machine design

• اختبار القبول في المصنع (FAT)

• اختبار قبول الموقع (SAT)

• Installation and commissioning

• IQ/OQ documentation support

• تدريب المشغلين

• Global technical support

• Spare parts supply

• Complete pharmaceutical production line solutions

Whether you are producing eye drops, nasal drops, ear drops, or other small-volume liquid pharmaceuticals, our automatic bottle unscrambler provides the ideal bottle feeding solution for high-efficiency production.
