Handling & Orientation Machine
The unscrambler aligns each bottle using mechanical guides and orientation devices to ensure consistent neck-leading presentation before transferring them to the outfeed conveyor. Optional bottle cleaning systems, such as integrated air rinsing or blowing units, can be included to remove debris prior to filling machine.
Container Handling Machine
RELIANCE RLP Series Unscrambler Machine combines mechanical simplicity with precision handling, ensuring your bottles are delivered clean, correctly orientated, and ready for filling with maximum efficiency.
Hygienic and Enclosed Design
1.）All stainless steel and anodised aluminium construction.
2.）Fully enclosed design for hygiene and operator safety.
3.）Low-level bottle sensor and flow monitoring scanners.

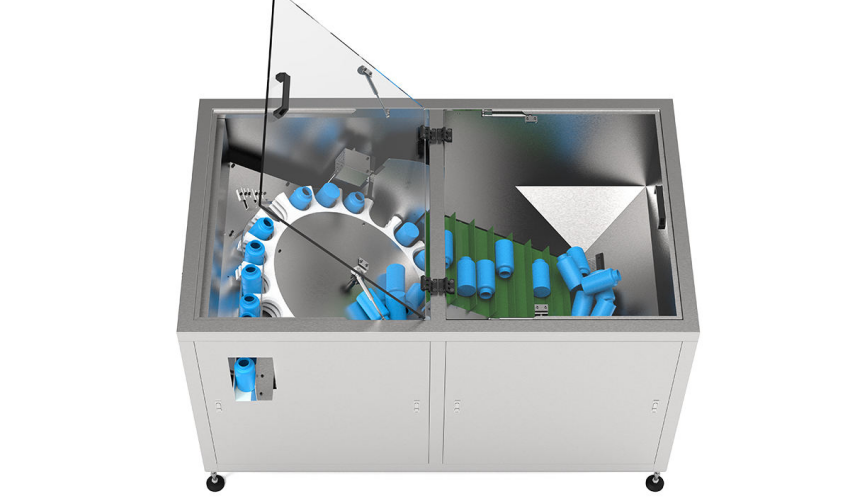

Integrated Feeding and Elevation
1. ） Compact footprint with integrated hopper and elevator.
2.） Optional bottle cleaning and orientation systems.
The RLP Series Bottle Unscrambler Machine is a reliable, low-profile unscrambling solution designed for consistent container orientation and smooth integration into packaging lines. Its versatile “belt & hook” design supports quick, repeatable changeovers and accommodates a wide range of container sizes and production speeds. With features like tool-less adjustments and an auto-reversing pre-sorter, the system ensures continuous, trouble-free operation with minimal operator intervention.
Tube/Vial Unscrambler
Unscrambler machine design for pharma and cosmetic plstic tubes, vials, pens, tall containers

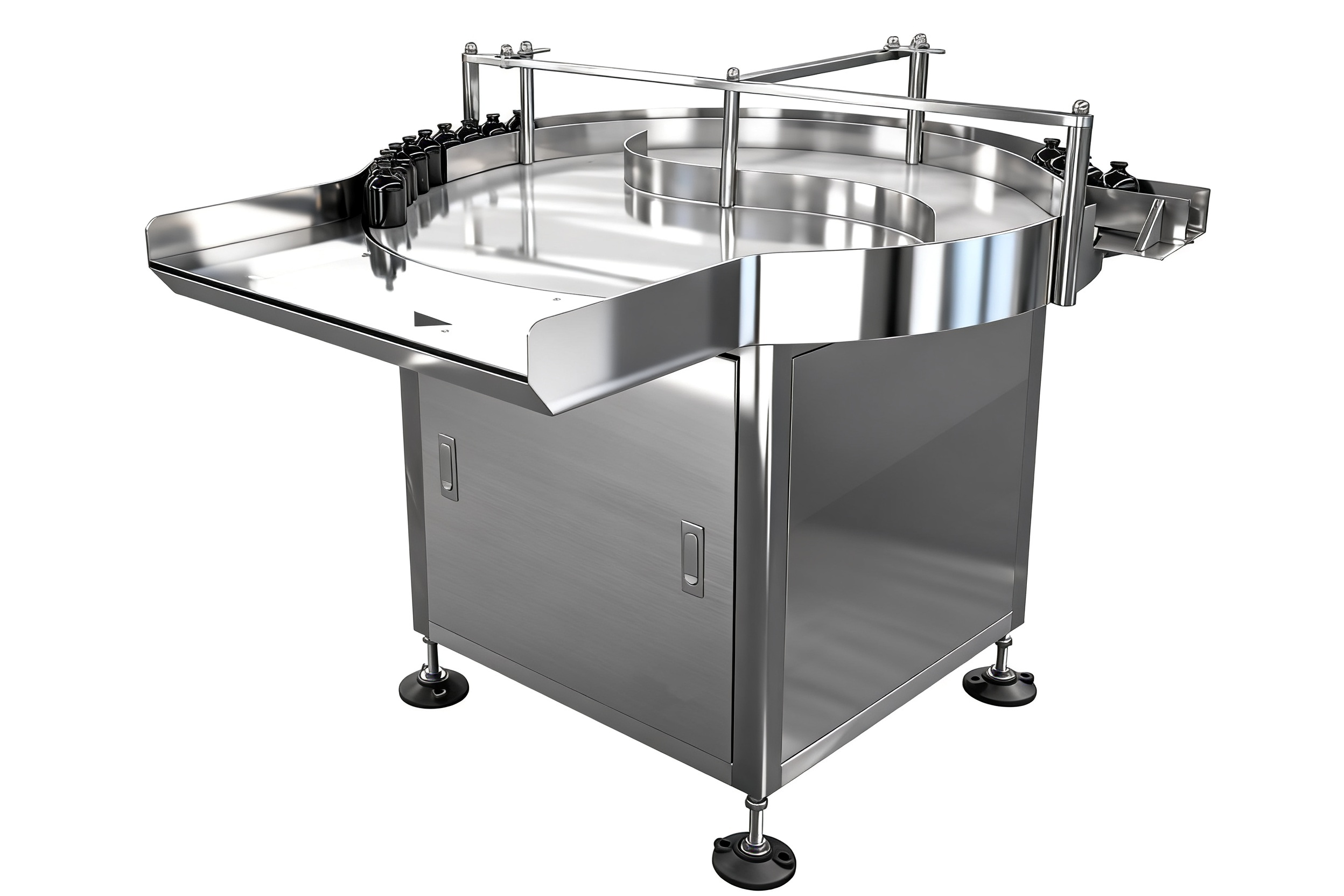

Rotary Feeding Table
Rotary type feeding table application for glass bottle, vials, containers, jars in pharma and cosmetic

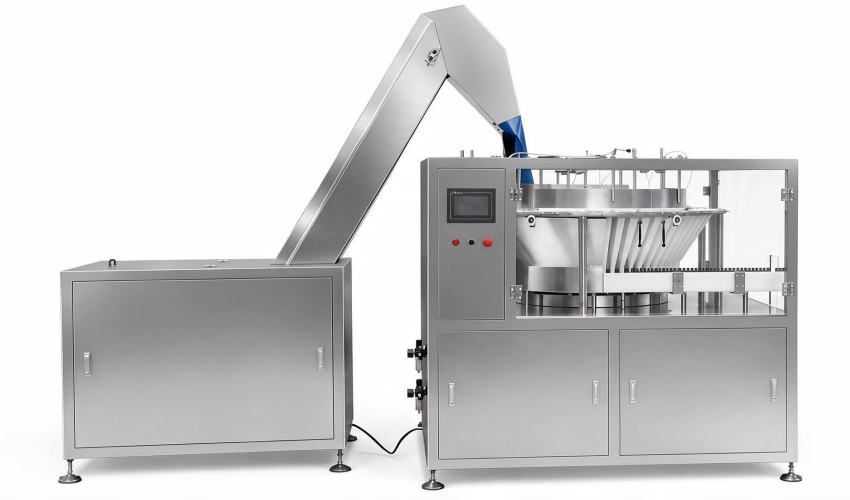

High Speed Handling
Rotary type high speed handling machine for all round, cylinder plastic bottle, containers, speed meet 220 bottles/min

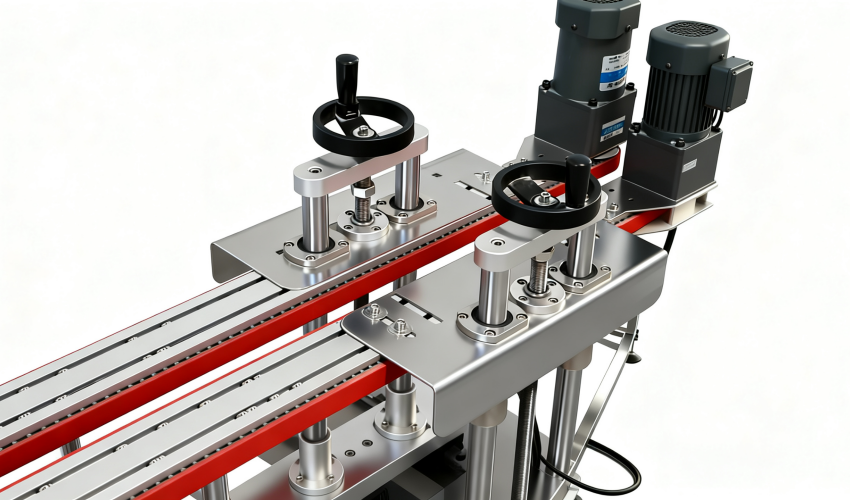

Gap Conveyor
Gap conveyor is used for lift up bottles after unscambler machine, or it can be intalled on the end of labeler for batch print.

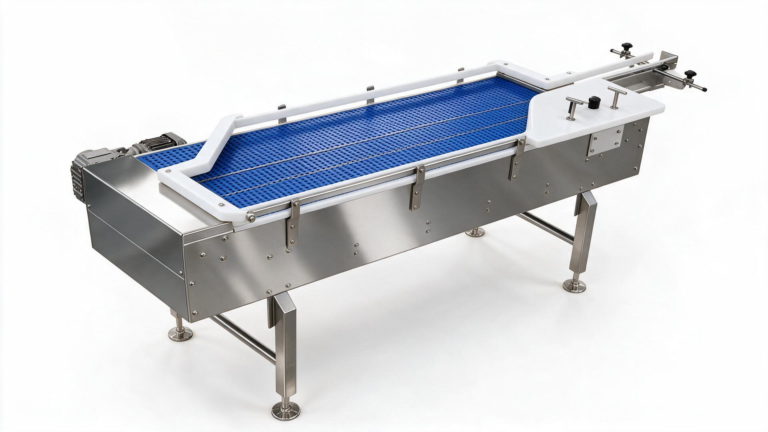

Accumulation Table
Flexible conveyor belt accumulation table application on glass bottle and vials for feeding or collection with counting function.
Bottle Unscrambler
Small speed unscrambler machine used for 5ml-100ml pharma and cosmetic plastic bottle, vials and containers.
Bottle Orientation & Efficiency
Fully automatic sorting the plastic bottle , containers, vials, tubes before filling, labeling machine, GMP/FDA compliance
Full Stainless Steel
316L or 304 SS meet GMP/FDA standard application for Pharma, Cosmetic, Food industry
Quick, no-tools changeover
Between formats application for different size of bottle and containers
Speed up to 200 bottles
Up to 200 bottles per minute design for high speed pharma packing line
GMP Standards
Pharma and medical unscrambler machines are developed and built in accordance with GMP/FDA requirements
Fully Enclosed Design
For hygiene and operator safety in pharmaceutical and food industry
Validation Documentation
We can supply the scope of documentation you need for your validation process
Часто задаваемые вопросы
What is a pharma bottle unscrambler machine used for?
A pharma bottle unscrambler machine is used to automatically sort, orient, and feed empty bottles into pharmaceutical filling lines. It replaces manual bottle loading and provides a continuous supply of containers for filling, capping, and labeling processes.
What types of bottles can a pharmaceutical bottle unscrambler handle?
The machine can be customized for different bottle materials and formats, including PET, HDPE, PP, and glass containers. It is suitable for oral liquid bottles, eye drop bottles, nasal spray bottles, and other pharmaceutical packaging containers.
How does an automatic bottle unscrambler work?
The system uses a rotating disc, sorting mechanism, or customized orientation device to separate randomly placed bottles, position them upright, and transfer them in an organized manner to the next production process.
Can the bottle unscrambler be integrated with a pharmaceutical filling line?
Yes. The automatic bottle unscrambler machine can be connected with air washing machines, liquid filling machines, capping machines, labeling machines, and complete pharmaceutical packaging lines for continuous operation.
How do I choose the right bottle unscrambler for my production line?
Selection depends on bottle size, material, shape, production speed, and downstream equipment requirements. Bottle samples and production parameters are usually required to customize the most suitable configuration.
What is the typical speed of a pharma bottle unscrambler machine?
The production speed depends on bottle specifications and line requirements. Different models can be designed for low-speed laboratory production or high-speed pharmaceutical packaging lines.
Can the machine handle different bottle sizes with quick changeover?
Yes. The system can be equipped with adjustable guides and change parts to support multiple bottle formats, helping reduce setup time and improve production flexibility.
Does a pharma bottle unscrambler meet GMP requirements?
GMP-oriented bottle unscramblers feature stainless steel construction, hygienic design, easy cleaning surfaces, and reliable control systems to support pharmaceutical manufacturing environments.
