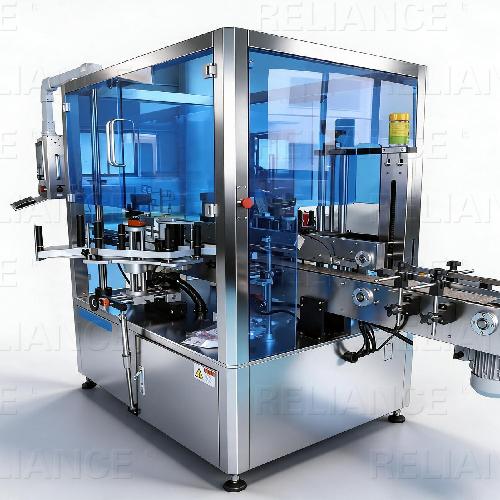

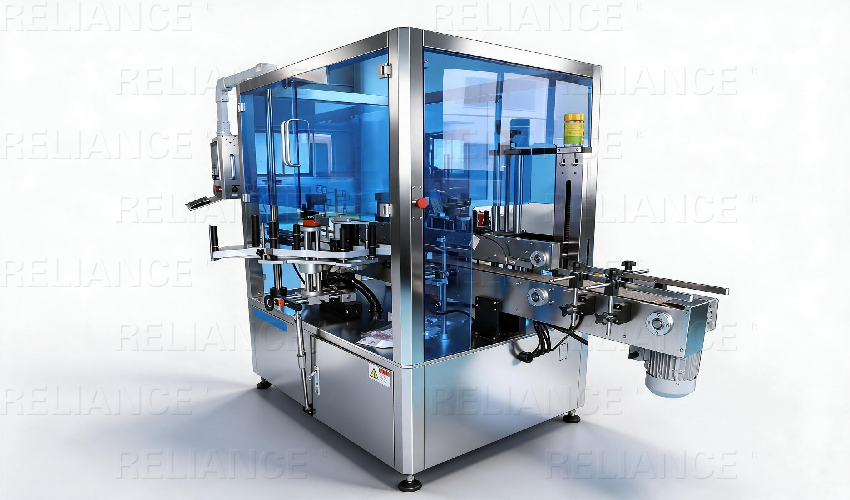

FDA Compliant BFS Labeling Machine with CCD Camera Inspection
The GMP/FDA BFS Labeling Machine with CCD Camera Inspection is an automated labeling solution for pharmaceutical BFS containers and sterile packaging. Featuring precision labeling, advanced CCD vision inspection, barcode verification, and complete data recording, it ensures product quality, traceability, and GMP-compliant manufacturing performance.
索取报价
请输入所需数量，并将其添加到报价清单中以查询价格。.
技术规格
DESCRIPTION
The GMP/FDA BFS Labeling Machine with CCD Camera Inspection is an advanced automated labeling system designed for pharmaceutical Blow-Fill-Seal (BFS) containers, sterile packaging, and medical applications. Built with GMP-compliant design and FDA-compliant materials, the machine integrates high-precision labeling, CCD vision inspection, barcode verification, and complete production data recording. The system ensures accurate label application, real-time quality monitoring, and full product traceability to support regulated manufacturing environments and data integrity requirements.
GMP/FDA Compliant Pharmaceutical Design
- Designed for regulated pharmaceutical and biotech production environments
- Stainless steel construction with hygienic and easy-to-clean design
- Uses FDA-compliant materials for product contact components

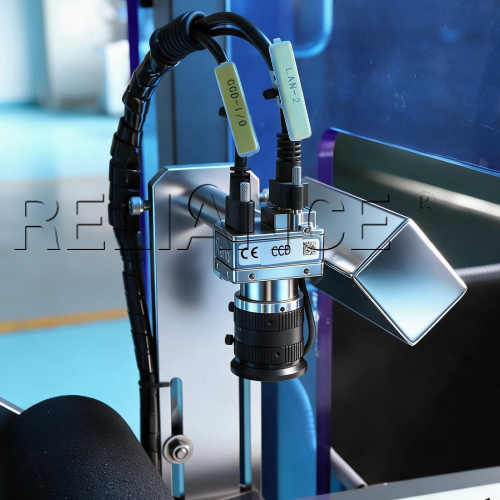

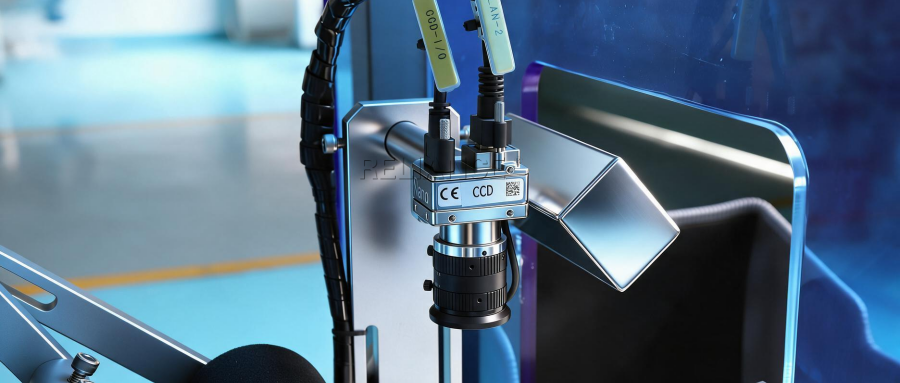

Advanced CCD Vision Inspection
- Automatic inspection of label position, presence, barcode, and printed information
- Real-time defect detection and automatic rejection of non-conforming products
- High-resolution image capture for quality verification and investigation
Complete Data Integrity & Traceability
- Records production parameters and inspection results automatically
- Supports batch tracking and quality documentation management
- Provides historical inspection images and audit-ready records
High Efficiency & Flexible Integration
- Compatible with BFS filling and packaging lines
- Easy recipe management and fast product changeover
- Suitable for pharmaceutical, biotech, and IVD applications
SPECIFICATION
| 项目 | Specification |
|---|---|
| 应用 | BFS containers, sterile pharmaceutical packaging, medical products |
| Labeling Type | Automatic wrap-around / top / side labeling (customizable) |
| Inspection System | High-resolution CCD camera vision inspection |
| Inspection Functions | Label presence, position, barcode, OCR/OCV, printing quality verification |
| Labeling Accuracy | ±0.5 mm (depending on container and label material) |
| Production Speed | Up to 100-200 pcs/min (customizable according to requirements) |
| Container Compatibility | BFS ampoules, plastic containers, customized BFS formats |
| Data Management | Inspection data recording, image storage, batch traceability |
| 控制系统 | Industrial PLC + HMI touchscreen |
| 材料 | GMP stainless steel construction |
| Compliance | GMP design, FDA-compliant contact materials, supports 21 CFR Part 11 data integrity requirements |
常见问题解答
Q1: Is this BFS labeling machine designed for GMP and FDA-regulated production?
Answer:
Yes. The machine is designed according to GMP requirements and uses FDA-compliant materials, making it suitable for pharmaceutical, biotech, and sterile BFS packaging applications.
Q2: What products can be labeled by this BFS labeling machine?
Answer:
The machine is designed for BFS containers, sterile plastic ampoules, pharmaceutical packaging, and medical products requiring high-accuracy labeling and inspection.
Q3: How does the CCD camera inspection system work?
Answer:
The CCD vision system captures real-time images of each labeled product and automatically checks label position, barcode readability, printing quality, and other critical quality attributes.
Q4: Does the machine record inspection data and images?
Answer:
Yes. The system can record inspection results, production parameters, and product images to support complete traceability, quality analysis, and data integrity management.
Q5: Can this BFS labeling machine be integrated into an automated pharmaceutical production line?
Answer:
Yes. The machine can be integrated with BFS filling, inspection, and packaging systems to create a complete automated production solution for regulated pharmaceutical manufacturing.
