GMP Topical Tincture Filling Capping Machine

The GMP Sterile Topical Tincture Liquid Filling Capping Machine is an automatic pharmaceutical filling and capping solution designed for accurate filling of topical tinctures and other liquid pharmaceutical products into glass or plastic bottles. The machine integrates bottle feeding, liquid filling, cap placing, capping, inspection, and automatic rejection into one efficient production system.

Designed for pharmaceutical manufacturers, this topical liquid filling machine features hygienic construction, precision dosing technology, anti-drip filling nozzles, and automatic PLC control. The equipment can be customized for different bottle sizes, filling volumes, liquid viscosities, and production capacities.

For products requiring sterile or controlled manufacturing conditions, the machine can be configured with appropriate cleanroom, HEPA-filtered airflow, closed product-transfer, RABS, or isolator solutions according to the validated manufacturing process. FDA guidance emphasizes that sterile manufacturing requires validated controls to prevent microbiological contamination.

Il GMP Sterile Topical Tincture Liquid Filling Capping Machine is suitable for:

• Topical tinctures
• Pharmaceutical tincture solutions
• Antiseptic liquids
• Topical pharmaceutical solutions
• Herbal liquid formulations
• Skin treatment liquids
• Medical topical preparations
• Other low- to medium-viscosity pharmaceutical liquids

The filling system can be selected according to the formulation, viscosity, filling volume, and required production speed. GMP sterile topical tincture liquid filling capping machine for precise pharmaceutical liquid filling, automatic capping, inspection, and GMP-oriented production.

For products that are specifically required to be manufactured as sterile products, the sterile liquid filling machine can be integrated into an appropriate contamination-control strategy.

Optional technologies include:

• Grade A / ISO 5 filling protection
• HEPA-filtered airflow
• Closed product transfer
• RABS
• Isolator
• Sterile product-contact pathway
• Automated material transfer
• Environmental monitoring interfaces

It is important to note that equipment alone does not establish sterility. Sterility assurance depends on the complete validated facility, equipment, materials, personnel practices, environmental controls, sterilization processes, and aseptic process. FDA specifically identifies validated aseptic and sterilization processes as part of sterile manufacturing controls

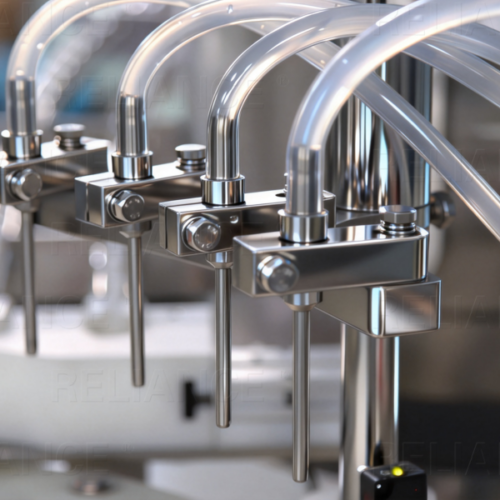

1. Performance – Walking beam Nozzle for one time filling to achieve more filling time for gentle filling, Individual Servo Filling pump for highest accuracy.
2. Product Safety – Multiple detection and inspection available, 100% tare in tare out, under torque etc.
3. Conversion – Full Servo Driven with rapid changeover via recipe and minimum change part.
4. Compliance – 15” IPC HMI comply to FDA 21 CFR Part 11 and European safety CE Marked.
5. Digitalization – Ready with OPCUA communication port for MES and ERP , Cloud base real-time OEE Monitoring.
6. Barrier System – LAF , Open RABs or Isolator design to GMP Annex 1.
7. Documentation – Full Validation document DQ(RA, FSDS, HDS, SDS, CSV) , IQ, OQ.
8. Barrier System – Grade A or ISO Class 5 environment, Suitable for Laminar Flow, Open RABs or Isolator, VHP compatible
