Vertical Top Open Bottles Cartoner Machine
Vertical Carton Packaging Machine is available with automatic bottle/vials/containers/tubes loading and count weighs scale interface. This compact, portable, vertical cartoner is suitable for automatic and hand-load applications. It features powered folding carton magazines, rotary carton erectors, fixed and adjustable carton pockets for carton squareness, tuck or glue style closing mechanisms, and PLC controls with self-diagnostics.
Request a Quote
Enter the quantity you need and add to your quote list for pricing inquiries.
DESCRIPTION

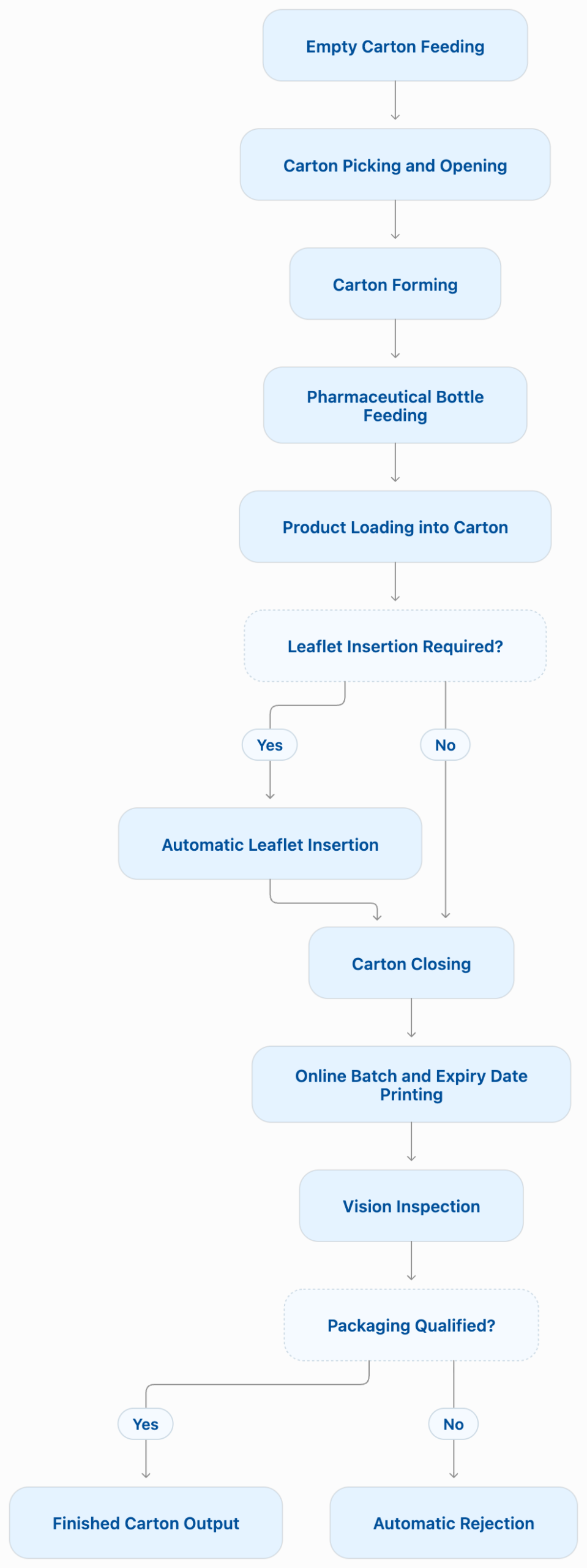

The Vertical Automatic Pharma Bottle and Container Cartoning Machine is designed for efficient and reliable secondary packaging of pharmaceutical bottles and containers. Featuring a vertical cartoning process, it supports automated carton erecting, product loading, and carton closing, helping pharmaceutical manufacturers improve packaging efficiency and maintain consistent product presentation.
Designed with GMP-oriented principles, the machine can be configured to support applicable pharmaceutical manufacturing and quality requirements. Optional features include an automatic folded leaflet inserter, online printing for batch numbers and expiry dates, vision inspection, and automatic rejection of cartons with detected defects. These options help enhance product traceability, packaging quality control, and operational reliability.

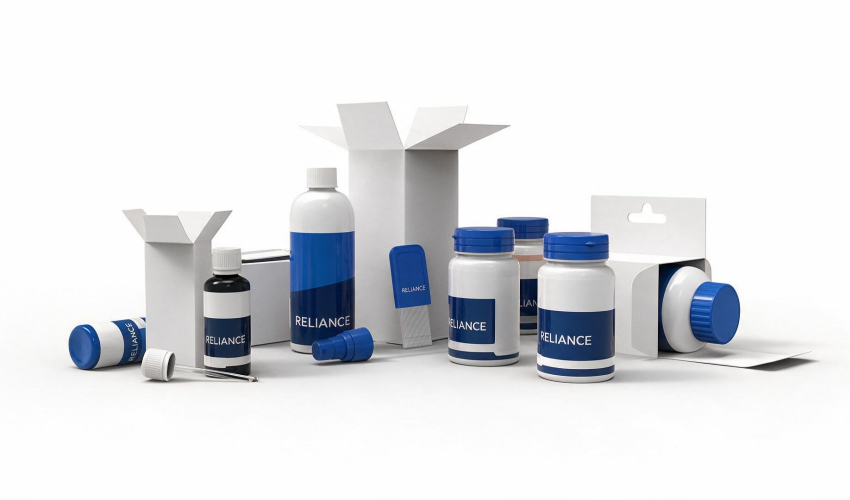

Suitable for oral solution bottles, syrup bottles, eye drop containers, and other pharmaceutical packaging formats, this vertical cartoner can be customized for different bottle dimensions, carton sizes, and production requirements. It can also be integrated with upstream filling and capping machines or downstream packaging equipment to create a coordinated pharmaceutical packaging line. Final GMP and regulatory suitability depends on the machine configuration, documentation, qualification, and applicable requirements.
SPECIFICATION
| Application | Bottle, vials, tubes, candy, medical parts | |
| 1 | Speed | 50 -100 cartons/Min |
| 2 | Carton Specs | Max. 180x110x65mm
Min. 75x35x35mm |
| 3 | Power | 3KW |
| 4 | Dimension | 4000 x 1500x 1780mm |
| 5 | Weight | 170KG |
FAQ
1.How to get customized solutions and quotation?
Email us your URS documents, if not, tell us what product you want to pack, the size and your requirement on the output. It is better to attach product pictures.
2. What documentation you can offer for the pharma cartoner machine?
RELIANCE Machinery offers comprehensive validation documentation, including User Manual, FAT (Factory Acceptance Test), SAT (Site Acceptance Test), IQ (Installation Qualification), OQ (Operational Qualification), and PQ (Performance Qualification) protocols. These documents ensure that the equipment meets all regulatory and operational requirements
3. How to get the spare parts?
Contact our salesman and provide the nameplate of the machine and the Part No. on the parts, if not, you can offer clear photos.
4. Does the cartoner support online printing and inspection?
Yes. Optional systems can print batch numbers and expiry dates, inspect packaging quality, and automatically reject defective cartons.
5. Can the machine meet pharmaceutical GMP requirements?
It can be designed to support applicable GMP requirements. Final compliance depends on the machine configuration, documentation, qualification, and relevant regulations.
FEATURE
1. The cartoning machine features an intermittent-motion design and is controlled by a PLC. Its structure is simple and easy to maintain. Through a complex transmission system that mimics human movements, the machine automatically performs tasks such as carton feeding, carton opening, leaflet folding, inserting the product (and leaflet), and sealing the carton.
2. The machine achieves a high overall cartoning speed while maintaining a lower operating speed for the packaging materials themselves. This reduces the sensitivity of the packaging materials to operating speed, enhances compatibility with various materials, and minimizes mechanical wear. Key characteristics include high output combined with low mechanical operating speed.
3. The machine utilizes a vacuum pump for automatic carton retrieval and employs a wide-angle opening mechanism to ensure high precision during the carton-opening process.
4. It is equipped with a high-speed leaflet-folding machine, an automatic leaflet-folding system, and a corresponding transport mechanism.
5. The leaflet insertion system uses a PLC-controlled rotary mechanism. This avoids the issues of leaflets slipping—a common problem with traditional insertion mechanisms caused by synchronization errors—and allows for the adjustment of the leaflet’s folded length prior to insertion.
6. The insertion system operates intermittently and includes an overload protection feature for the pusher, ensuring that blister packs and leaflets are inserted safely.
7. The machine is designed for convenient adjustment and maintenance. Various carton-closing methods and optional auxiliary devices are available. Changing to a different carton size does not require replacing molds; instead, the machine can be adjusted and positioned according to the new dimensions.
8. The frame and main plates possess high strength and rigidity. The main drive motor and a clutch-brake assembly are housed within the frame, while the transmission systems are mounted on the main plates. A torque-limiting overload protector is included to disengage the main drive motor from the transmission components in the event of an overload, thereby preventing damage to the machine’s parts.
9. Safety features:
If no carton is detected: The machine will not perform an insertion, will stop automatically, and will trigger an audible alarm.
If no leaflet is detected: The machine will not perform an insertion and will reject the empty carton; it will also stop automatically and trigger an audible alarm.
10.If no blister pack is detected: The carton and leaflet will remain on hold; the machine will stop automatically and trigger an audible alarm. 11. Equipped with a steel-character marking system; it can also be integrated with an inkjet coding machine to complete the task collaboratively.
TRACKING & TRACE
A Track & Trace system is a solution designed to ensure reliability throughout the production and consumption lifecycle by managing the history of production and supply, thereby preventing product counterfeiting and theft. This is achieved by generating unique serial numbers during the production process and tracking the production history through printing and scanning. The entire journey—from production to supply—can be monitored transparently via the system.
1. Rapid troubleshooting by tracing the root causes of product recalls
2. Flexible application, regardless of product type
3. Fast and accurate barcode verification using vision systems
4. Data management via an intuitive, streamlined interface
5. Real-time operational status monitoring through proprietary software
6. Comprehensive tracking of the entire packaging process, from initial production to final palletizing
OPTIONAL
1. Vision Verification
2. Insert Feeding
3. Open Flap Detection
4. Coding/Printing
5. PC-Based HMl Touch Screen
6. Bar Code Verification
7. Pharmaceutical Validation Assistance Documents
