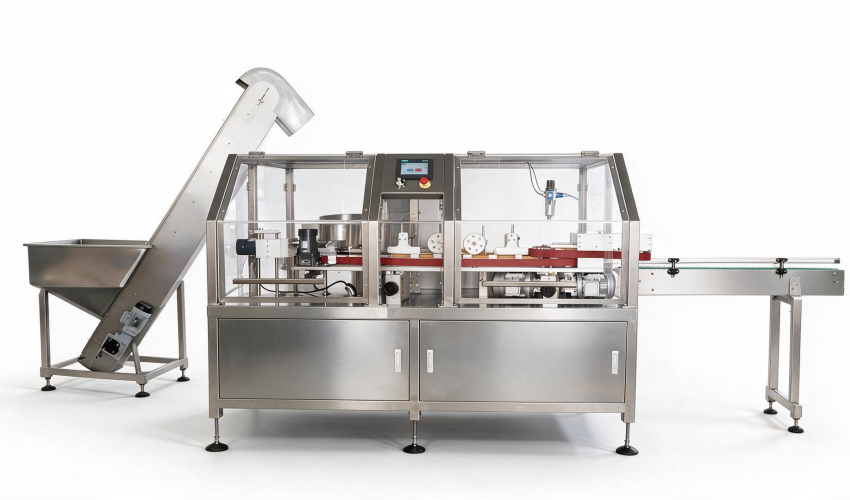

Высокоскоростная машина для обработки пластиковых флаконов фармацевтического назначения
Horizontal High Speed Bottle Handling Machine is an effective bottle unscrambling machine used in plastic bottle filling line. With the capacity of high-speed bottle feeding, this bottle unscrambler is suitable for various high-speed filling and capping production lines and packaging lines.
Запросить расценки
Укажите необходимое количество и добавьте товар в список запросов на расчет стоимости.
DESCRIPTION
Fully automatic bottle unscrambler – linear bottle unscrambler – horizontal bottle unscrambler – hook type bottle unscrambler – micro fully automatic bottle unscrambler. The equipment adopts the split design of the elevator and the main machine. It is flexible in placement and can organize the bottles with the mouth. It is used for packaging containers with mouth bottoms, commonly used in the pharmaceutical, chemical, food and beverage industries, etc. to organize bottles with large differences in capacity. The width of some mechanisms is adjustable and can adapt to a wide range of bottle types.
A Horizontal High-Speed Bottle Handling Machine is a specialized equipment used in the packaging industry for efficiently handling bottles. It typically features a conveyor system that transports bottles horizontally at high speeds, often synchronized with other packaging machinery like fillers, cappers, and labelers. This introduction would likely outline the machine’s key features, benefits, and applications, emphasizing its ability to increase production efficiency, reduce labor costs, and ensure consistent bottle handling. Additionally, it might highlight any advanced technologies or customizable options available to meet specific production needs.
HIGH LIGHT:
- Intelligent photoelectric detection, fully automatic detection of full bottles and small bottles.
- The barrel-blocking disc does not rotate idling, reducing mark scraping.
- No tools are needed to change the bottle shape, and the handle can be adjusted
- Detect and eliminate inverted bottles to ensure 100% efficiency in unpacking and discharging bottles (output of bottles of 100m1-1000ml ≤ 3000-10000 bottles/hour)
OPTIONAL:
- Customized storage for the bottle feeding
- Filling line connection with the program
APPLICATION:
SPECIFICATION
- Capacity of Machine:
| 30ml – 50ml bottle | ≤ 12000 bottles/hour |
| 50ml～200ml bottle | ≤ 9000 bottles/hour |
| 800ml bottle | ≤ 6000 bottles/hour |
| 1000ml bottle | ≤ 4800 bottles/hour |

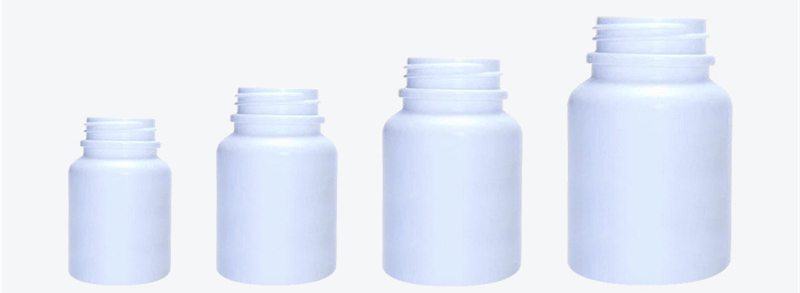

- Bottle diameter: Φ30mm~Φ100mm
- Bottle height: 100mm~250mm
- Power supply: AC380V; 50Hz
- Machine power: 2.2kW
- Overall dimensions 3000mm × 1500mm × 1500mm ( L X W X H )
- Machine weight: about 1300kg
Часто задаваемые вопросы
1. What types of bottles can a horizontal high-speed bottle handling machine handle？
These machines are designed to handle a wide range of bottle types, including glass and plastic bottles of various shapes and sizes.
2. What is the typical speed range of these machines?
Horizontal high-speed bottle handling machines can handle bottles at speeds ranging from hundreds to thousands of bottles per minute, depending on the specific model and configuration.
3. How does synchronization work with other packaging equipment?
Synchronization is achieved through precise control systems that coordinate the movement of the bottle handling machine with other packaging machinery, such as fillers, cappers, labelers, and packers. This ensures smooth and efficient operation along the entire packaging line.
4. Are these machines customizable to specific production needs?
Yes, many horizontal high-speed bottle handling machines offer customizable features and configurations to accommodate different bottle types, production requirements, and space constraints.
5. What safety features are incorporated into these machines?
Safety features may include guarding, emergency stop buttons, safety interlocks, and sensors to detect and prevent potential hazards, ensuring the safety of operators and minimizing the risk of accidents.
FEATURE
1. High-speed operation: Capable of handling bottles at rapid speeds, optimizing production efficiency.
2. Versatility: Designed to handle various bottle sizes, shapes, and materials, making it adaptable to different packaging requirements.
3. Precise synchronization: Ensures seamless integration with other packaging machinery for synchronized operations, minimizing downtime and maximizing productivity.
4. Durable construction: Built with robust materials and components to withstand continuous operation in demanding industrial environments.
5. User-friendly interface: Equipped with an intuitive control system for easy setup, operation, and monitoring of machine performance.
6. Flexibility: Offers customizable features and adjustable settings to accommodate specific production needs and bottle handling requirements.
7. Safety features: Incorporates safety mechanisms and guards to protect operators and prevent accidents during operation.
8. Maintenance-friendly design: Designed for easy access to components and routine maintenance tasks, reducing downtime and ensuring optimal performance.
9. Energy efficiency: Utilizes energy-saving technologies and efficient motor systems to minimize energy consumption and operational costs.
10. Integration capabilities: Compatible with automation systems and Industry 4.0 solutions for seamless integration into smart factory environments, enabling remote monitoring and control.
