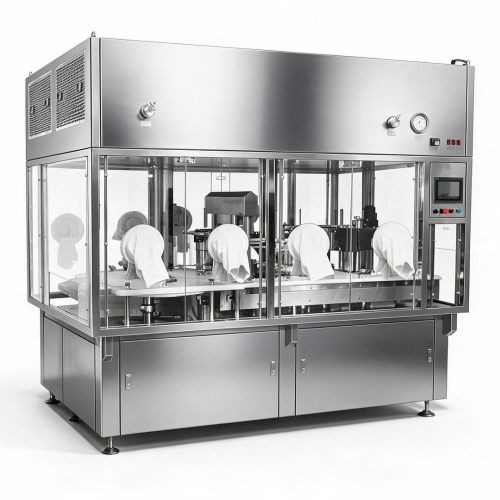

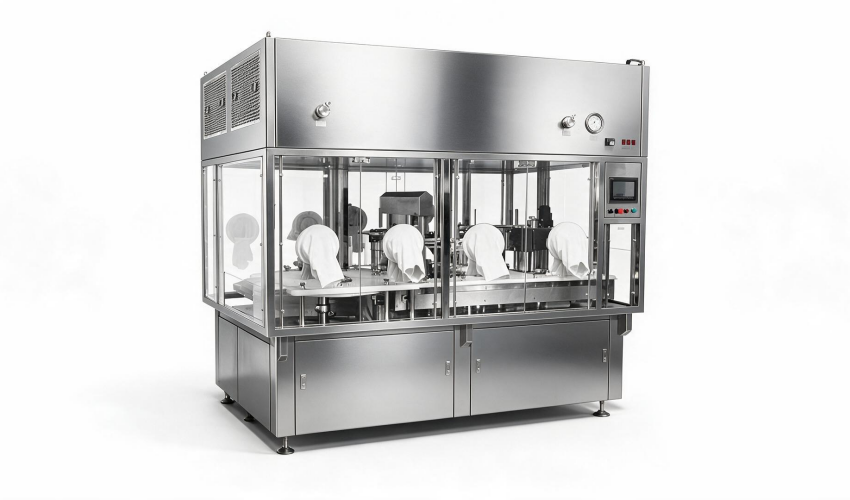

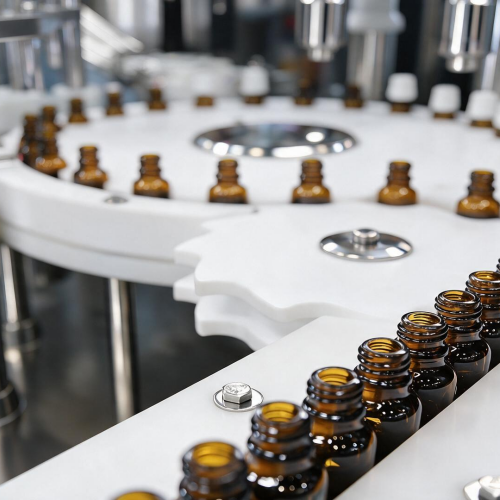

Probiotic Dropper Bottle Liquid Filling Capping Machine
The Probiotic Monoblock Dropper Bottle Filling Capping Machine is designed for automatic filling and sealing of probiotic liquids, nutritional supplements, and healthcare products in amber glass dropper bottles. Integrating bottle handling, precision liquid filling, dropper sorting and insertion, and capping all in one compact system, it provides stable operation, high dosing accuracy, and consistent sealing performance. With GMP-oriented hygienic design and flexible customization options, the machine is suitable for probiotic, vitamin, and nutraceutical liquid production lines requiring efficient and reliable small bottle packaging solutions.
Angebot anfordern
Geben Sie die gewünschte Menge ein und fügen Sie den Artikel Ihrer Angebotsliste hinzu, um ein Preisangebot anzufordern.
DESCRIPTION
RELIANCE RVF Automatic 30ml Probiotic Liquid Amber Glass Dropper Bottle Filling and Capping machine is a proven breakthrough in Monoblock filling and packing technology; this new intermittently operated system can be offered as a 2 or 3-function Monoblock and can accommodate everything for 10ml, 15ml, 30ml, 60ml, 100ml, 120ml, 150ml and 180ml amber or Boston glass containers and offers an output up to 30 – 60 – 80 containers per minute. It is the ideal system for a laboratory to small-scale or medium-scale production.
Within this Monoblock Automatic 30ml Probiotic Liquid Amber Glass Dropper Bottle Filling and Capping machine, you can perform filling, tip/stopper/glass dropper pipette/ nasal spray pumps/ mist pumps/ brush placement, as well as screw cap/ press on cap /cover-capping. The most notable new feature or lack of will be the extremely cumbersome large remote control panel that is NO LONGER necessary. The RELIANCE RVF monoblock design incorporates this overall electrical need in a very safe, efficient, and cost-effective way. When installing the RVF Automatic Monoblock filling and capping machine in your facility, you will only need to connect the power and airlines – that’s it! For some applications, you may wish to incorporate vibratory bowls for pre-sorting tips and dropper caps. However, these sorting bowls are easy to setup, freestanding, and can be quickly positioned within your existing floor plan.
It is designed to easily accept HEPA filtration units and can be equipped with a variety of servo-driven metering systems including piston pumps, volumetric pumps, and peristaltic and rotary piston pumps. Production rates can reach 30 – 60 – 80 cpm and combined with a smaller footprint with a lower cost point makes the RELIANCE RVF Monoblock the right choice for many liquid filling and capping projects.
SPECIFICATION
FILLING SYSTEM

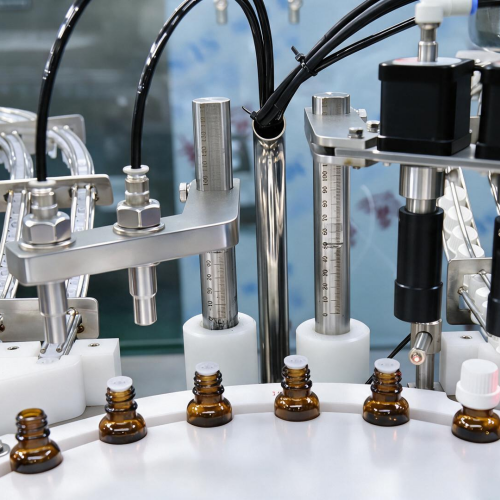

The filling process of the 30ml Automatic Probiotic Liquid Amber Glass Dropper Bottle Filling Capping Machine is the heart of the monoblock filling system. For this, we use different technologies to be able to process a variety of thin to viscous products. Whether water-like/WFI-based liquids or solutions, we have the right system.
When filling liquids, RELIANCE relies on proven filling technologies such as the rotary piston pump and mass flow filling systems. Each of these filling lines can be used for one or more types of products.
Within these automatic filling machines, a wide variety of product-related tasks can also be performed in the filling path. In particular, a clean-in-place/sterilize-in-place (CIP/SIP) module can be installed before filling.
Whatever you need, RELIANCE adapts the filling processes to the needs of your product so that you do not have to compromise on quality.
CAPPING SYSTEM:
The multifunctional closing/ capping units of the RVF Monoblock filling capping machine, easily allow the processing of various closures. We offer three different closing stations for different closure types: For droppers or stoppers that are set, for screw and sealing caps or spray pumps with dip tubes that are picked up and placed on by a robot arm and then closed and screwed on with servo motors, and finally over caps that are put on.
| No. | Artikel | Spezifikation |
| Manufacture | Shanghai Reliance Machinery Co.LTD | |
| 1 | Modell | R-VF |
| 2 | Filling size | 1ml, 5ml, 10ml, 30ml , 60m, 120ml |
| 3 | Kapazität | 1800 – 3600 bottles/hour |
| 4 | Qualified for filling | ≥99％ |
| 5. | Qualified for Capper | ≥99％ |
| 6. | Power | 2.1 KW 220V /110 V single phase |
| 7. | Pressure | 0.4 ~ 0.7MPa |
| 8. | Air Supply | 0.6kg/cm2，10m3/h |
| 9. | Gross weight | 750 KG |
| 10. | Dimension | 2600 x 1300 x 1800mm |
Häufig gestellte Fragen
Q1: What is a vitamin drops liquid filling capping machine used for?
A: A vitamin drops liquid filling capping machine is designed for automatic filling and sealing of vitamin liquids, nutritional supplements, and healthcare drop products into small bottles. It helps improve filling accuracy, production efficiency, and packaging consistency.
Q2: What types of bottles can be used with a vitamin liquid filling machine?
A: The machine can be customized for various small containers, including glass dropper bottles, plastic bottles, and oral liquid bottles. Bottle size, filling volume, and cap type can be adjusted according to product requirements.
Q3: How does the machine ensure accurate filling of vitamin liquid products?

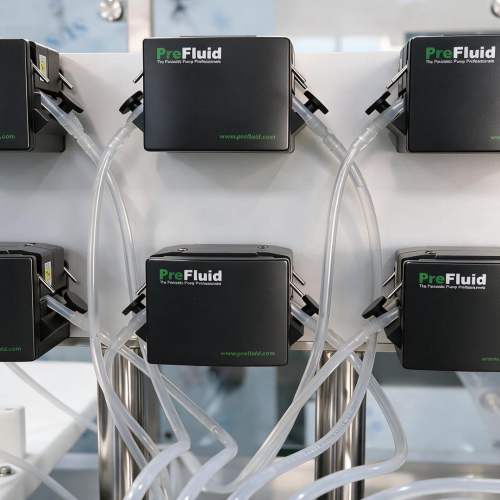

A: The system uses precision filling technology, such as peristaltic pumps or piston pumps, to achieve stable dosing performance. Filling parameters can be adjusted according to liquid viscosity and product characteristics.
Q4: Can the vitamin drops filling machine be customized for different products?
A: Yes. The equipment can be customized based on product formulation, bottle design, production capacity, and packaging requirements. Options include different filling systems, capping methods, and inspection functions.
Q5: Does the machine meet GMP requirements for supplement and pharmaceutical production?
A: Yes. The machine is designed with GMP-oriented features, including stainless steel construction, hygienic design, easy cleaning, and reliable process control to support high-quality liquid filling applications.
FEATURE
1. Affordable solutions without sacrificing quality, power, and service, easy operation and maintenance
2. Quick and easy changeover process for different sizes and shapes of containers
3. Dispenses free-flowing, semi-viscous to viscous, as well as molten products, pastes, and creams
4. Pharmaceutical Industry compliant and cleanroom-ready systems
5. Durable stainless steel structure with GMP or FDA-approved product contact parts
6. HMl touchscreen capabilities
7. Upgrade with automated capabilities
8. IQ / OQ / PQ/ DQ documents offer for custom qualification and validation.

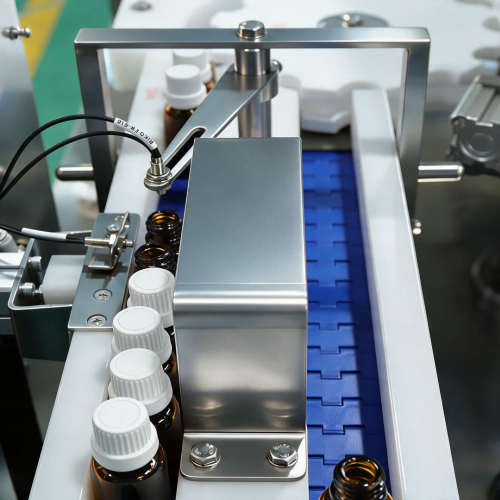

9. No Bottle – No Fill System, No Bottle Machine Stop System

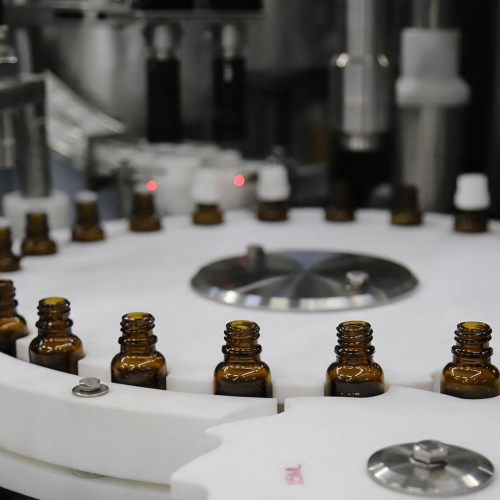

10. Rotary Bottle Movement system for smoother operation
11. All contact parts are made of SS316 material with an easy removal system
12. Very High Fill Accuracy of +/- 0.5% to +/-1%
13. Built-in A.C. Variable Freq. Drive System
14. No Cap on Bottle – Machine Stop System
15. Safe door open, machine stop
OPTIONAL
1. Customized hopper for the material storage
2. Servo drive for the filling pump
3. Anti-dripping filling nozzles
4. Guiding system for the bottleneck
5. Convery feeding for special shapes of containers
APPLICATION
Medicated oil, balm oil, massage oil, beard oil, tincture, serum, CBD oil, hemp oil, cannabis oil, cosmetic oil, hair oil, liquid drops, zinc supplement, Cosmetic Serum, Herbal Oil, Essential Oil, Sweet Oil, Hair Oil, Perfume Oil, Organic Oil, Cannabis Oil, CBD Oil, THC Oil, Tea Tree Oil, Mineral liquids, Liquid Zion, Liquid Calcium, Liquid Magnesium for woman and kids
